  • Screw Air Compressor
  • BPM Inverter Series
    • Screw Air Compressor

    Bumacompressor screw air compressor

    BPM Series

    PM Inverter type

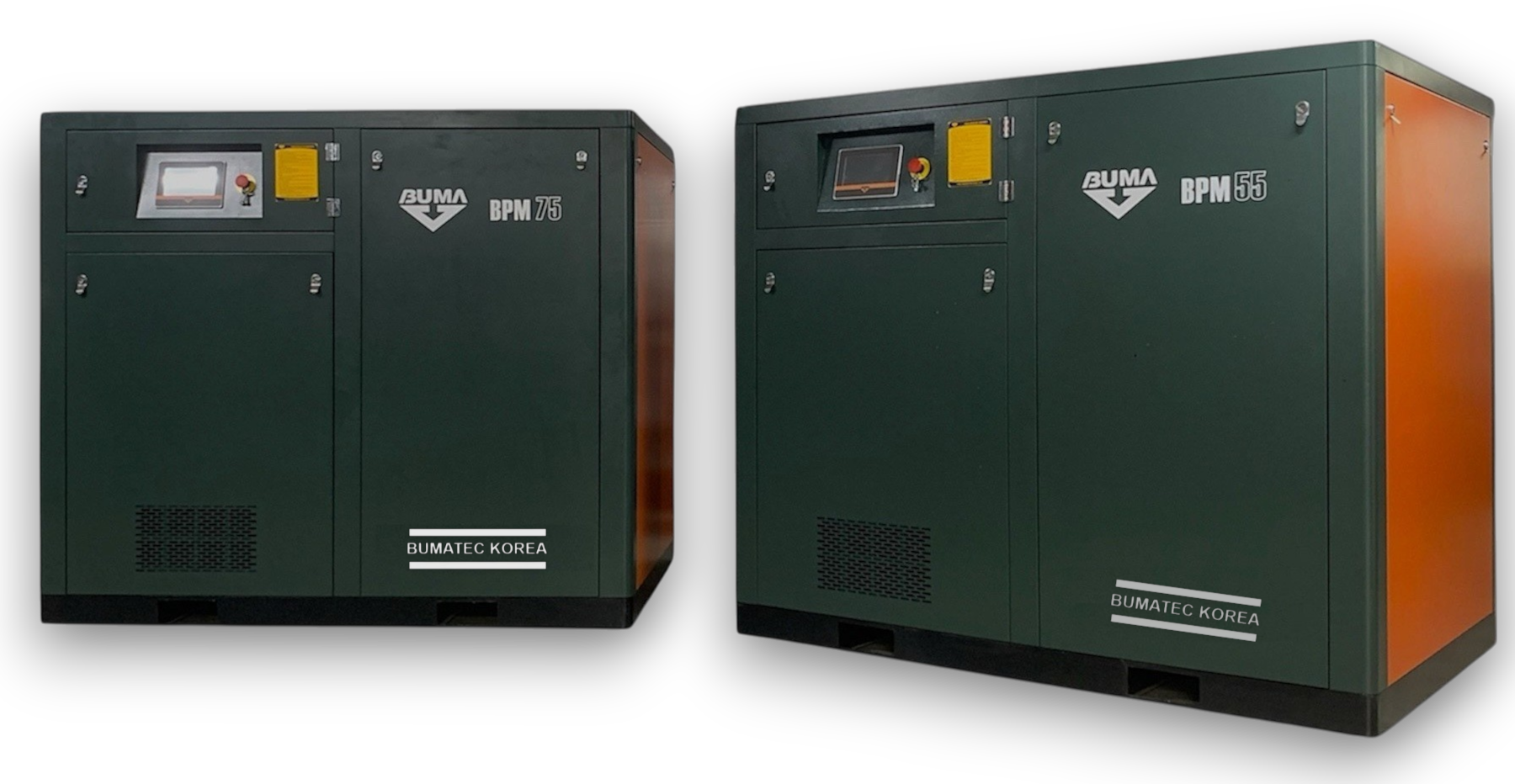

    BPM Inverter Series

    san-pham/banner_san_pham/bpm_3.jpg san-pham/banner_san_pham/bpm_mobile_3.jpg

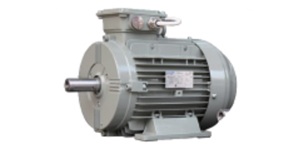

    • Applied High-efficiency motor (IP54)

      special_features/motor_ip54_300x150.jpg

    • Inverter for Compressor

      special_features/inverter_300x150.jpg

    • PLC touch screen

      special_features/pcl_touch_screen_300x150.jpg

    · Specifications

    MODEL MOTOR POWER PRESSURE FLOW METER NOISE OUTLET
    DIAMETER    		 DIMENSION WEIGHT
    Kw Hp Bar (s) ㎥/min dB L W H Kg
    BPM15 15 20 8 0.35 - 2.30 68 3/4" 1150 850 1100 350
    10 0.31 - 2.03
    BPM22 22 30 8 0.56 - 3.6 72 1" 1230 870 1110 500
    10 0.52 - 3.42
    BPM37 37 50 8 1.03 - 6.5 68 1-1/2" 1360 960 1260 750
    10 0.91 - 5.95
    BPM45 45 60 8 1.32 - 8.5 72 2" 1700 1100 1520 1100
    10 1.16 - 7.73
    BPM55 55 75 8 1.63 - 10.0 78 2" 1800 1300 1570 1200
    10 1.40 - 9.32
    BPM75 75 100 8 2.07 - 12.5 78 2" 1800 1300 1570 1500
    10 1.81 - 12.0
    BPM90 90 125 8 2.45 - 15.0 85 DN50 2200 1350 1650 1900
    10 2.05 -13.65
    BPM110 110 150 8 3.03 - 20.2 88 DN65 2500 1500 1950 2200
    10 2.69 -17.9
    BPM132 132 180 8 3.62 - 24.1 88 DN65 2500 1500 1950 2200
    10 3.21 - 21.3
    BPM160 160 220 8 3.82 - 26.5 88 DN100 2500 1500 1950 3000
    10 4.25 - 24.6
    BPM185 185 250 8 7.80 - 30.0 88 DN100 2800 1720 1920 3500
    10 7.23 - 27.8
    BPM200 200 280 8 8.50 - 32.9  88 DN125 3300 2000 215 4000
    10 7.85 - 30.2

    ※ POWER : 3PHASE/ 380V/ 50Hz
    ※ The above specifications are subject to change without prior notice to improve product performance.
