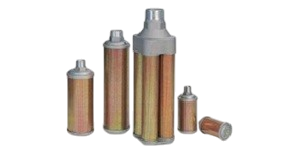

    • AIR DRYER MUFFLER

      dryer_filter/300x150_desiccant_muffler.png

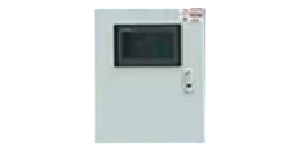

    • DESICCANT AIR DRYER CONTROLLER

      dryer_filter/300x150_desiccant_controller.png

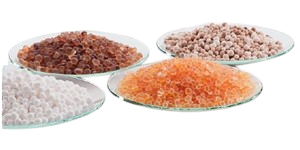

    • ACTIVATED ALUMINA

      dryer_filter/300x150_alumina.png

    · Specifications

    DESICCANT AIR DRYER (Heatless Type/ External Heater Type/ Heater Blower Type)
    Working Pressure

    0.4 - 1.0MPa
    Rated inlet Air Temp. ≤ 45 ℃
    Qutlet Dew Point - 40 ℃ , -70 ℃
    Air Loss ≤ 15%
    System Pressure Drop ≤ 0.021 Mpa
    Switch Cycle

    5-10min(adjustable)
    Desiccant Activated alumina & Molecular Sieve
    Inlet Oil ≤ 0.01 ppm
    Power 1PHASE/ 220V/ 50Hz
    DESICCANT AIR DRYER AIR-FLOW METER DIMESIONS PIPE WEIGHT
    Model m3/m Lenght (mm) Width (mm) Heigth (mm) Connection (inch) Kg
    HAD-0.5 0.7 700 400 1250 1/2'' 120
    HAD-1 1.6 740 450 1450 1'' 190
    HAD-2 2.6 740 450 1600 1'' 280
    HAD-3 3.8 900 500 1600 1'' 320
    HAD-6 7.0 1050 550 2000 1-1/2'' 480
    HAD-8 8.5 1050 550 2100 1-1/2'' 540
    HAD-10 11.5 1350 550 2200 2'' 650
    HAD-13 13.5 1350 550 2200 2'' 690
    HAD-15 17 1200 550 2300 DN65 780
    HAD-20 23 1600 550 2400 DN80 920
    HAD-25 27 1600 600 2500 DN80 1050
    HAD-30 34 1700 650 2650 DN80 1200
    HAD-40 45 1800 750 2800 DN100 1530
    HAD-50 55 2000 800 2900 DN100 1750
    HAD-60 65 2200 850 3000 DN125 2230
    HAD-80 87 2350 1000 3050 DN150 2710
    HAD-100 110 2800 1100 3100 DN150 4130
    HAD-120 130 2900 1150 3100 DN150 4700
    HAD-150 160 3100 1200 3200 DN200 5800
    HAD-200 210 3400 1300 3200 DN200 7370
    HAD-250 320 4000 1600 3300 DN250 11900
    HAD-300 360 4500 2000 3300 DN300 13100
    HAD-400 410 5000 3000 3300 DN300 14800
