Refrigerated air dryer

· Specifications

1. Ambient temperature: 38℃, Max. 42℃

2. Inlet temperature: 38℃, Max. 65℃

3. Working pressure: 0.7MPa, Max.1.6Mpa

4. Pressure dew point: 2℃~10℃（Air dew point：-23℃~-17℃）

5. No sun,no rain, good ventilation, device level hard ground, no dust and fluff

MODEL	HAD-1HTF	HAD-2HTF	HAD-3HTF	HAD-6HTF	HAD-8HTF	HAD-10HTF	HAD-12HTF
Max. air volume (m3/min)	1.2	2.4	3.6	6.5	8.5	11	13.5
Power supply	1PHASE/220V/50Hz
Input power (Kw)	0.37	0.52	0.73	1.26	2.47	2.43	2.63
Air pipe connection	3/4''	3/4''	1''	1-1/2''	1-1/2''	2''	2''

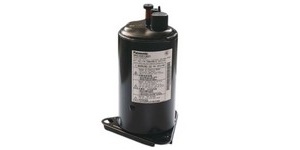

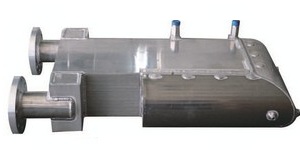

Evaporator type	Aluminum alloy plate
Refrigerant model	R132a		R410a
System Max. pressure drop (Mpa)	0.025
Intelligent control and protection

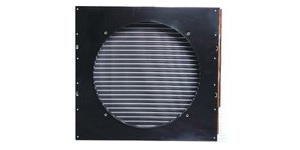

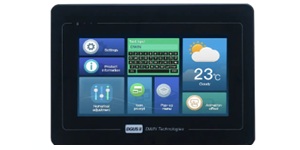

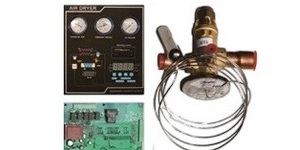

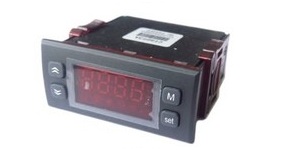

Display interface	LED dew point display,LED alarm code display,operation status indication

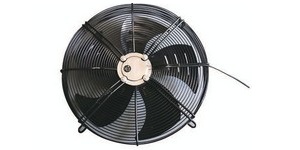

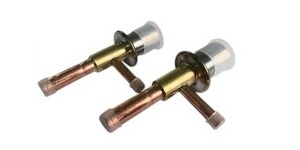

Intelligent anti-freezing protection	Constant pressure expansion valve and compressor automatic start/stop
Temperature control	Automatic control of condensing temperature/dew point temperature
High voltage protection	Temperature sensor		Temperature sensor and inductive intelligent protection
Low voltage protection	Temperature sensor and inductive intelligent protection
Weight (KW)	34	42	50	63	73	85	94
Dimension (LxWxH)	480x380x665	520x430x725	580x460x785	700x540x910	770x590x990	770x590x990	800x610x1030

※ POWER : 1PHASE/ 220V/ 50Hz
※ The above specifications are subject to change without prior notice to improve product performance.

1. Ambient temperature: 38℃, Max. 42℃

2. Inlet temperature: 38℃, Max. 65℃

3. Working pressure: 0.7MPa, Max.1.6Mpa

4. Pressure dew point: 2℃~10℃（Air dew point：-23℃~-17℃）

5. No sun,no rain, good ventilation, device level hard ground, no dust and fluff

MODEL	HAD-15HTF	HAD-20HTF	HAD-25HTF	HAD-30HTF	HAD-40HTF	HAD-50HTF	HAD-60HTF
Max. air volume (m3/min)	17	23	27	34	45	55	65
Power supply	3PHASE/ 380V/ 50Hz
Input power (Kw)	2.7	3.7	4.0	5.5	6.3	7.5	9.2
Air pipe connection	DN80			DN100		DN125
Evaporator type	Aluminum alloy plate
Refrigerant model	407C
System Max. pressure drop (Mpa)	0.025
Intelligent control and protection
Display interface	LED dew point display,LED alarm code display,operation status indication
Intelligent anti-freezing protection	Constant pressure expansion valve and compressor automatic start/stop
Temperature control	Automatic control of condensing temperature/dew point temperature
High voltage protection	Temperature sensor		Temperature sensor and inductive intelligent protection
Low voltage protection	Temperature sensor and inductive intelligent protection
Weight (KW)	135	150	220	310	360	385	530
Dimension (LxWxH)	1000x850x1160	1000x900x1200	1000x950x1300	1200x1000x1550	1200x1000x1650	1200x1000x1650	1600x1100x1800

※ POWER : 3PHASE/ 380V/ 50Hz
※ The above specifications are subject to change without prior notice to improve product performance.
