  • Screw Air Compressor
  • BPM Mini Series
    • Screw Air Compressor

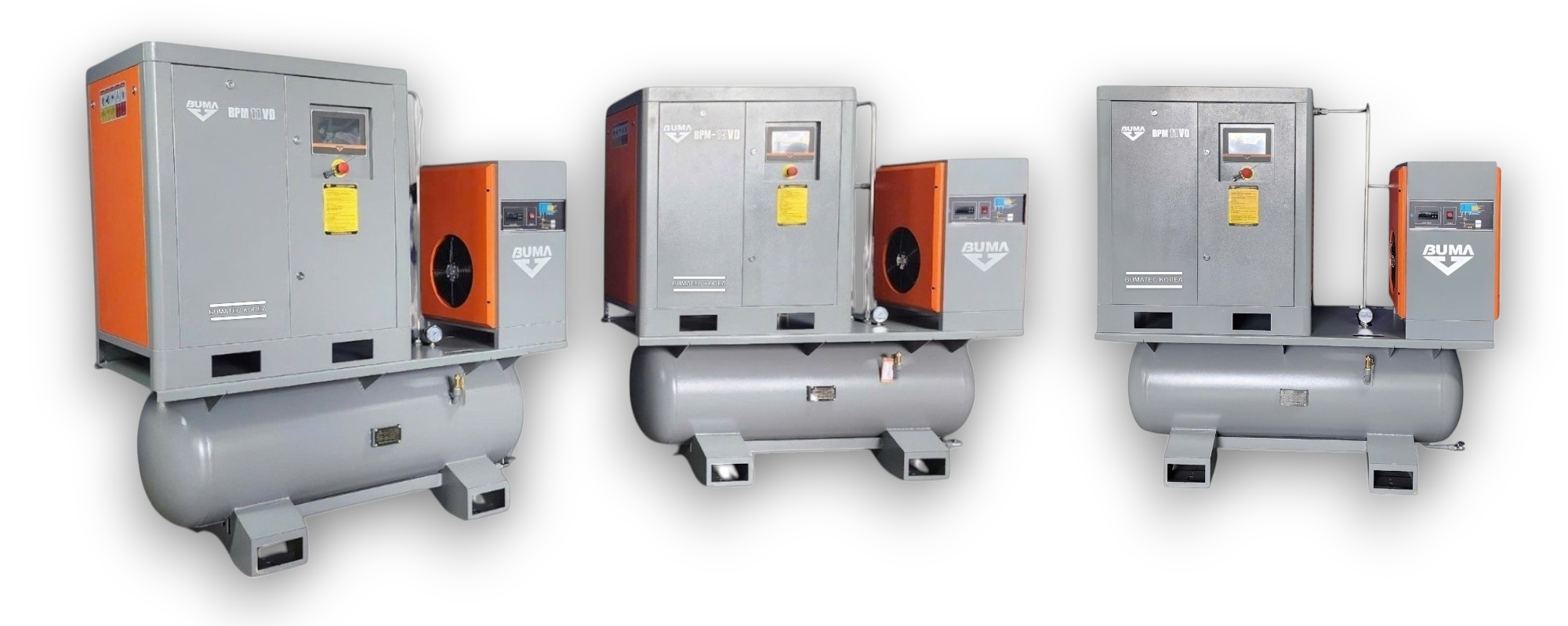

    Bumacompressor screw air compressor for workshop

    BPM Mini Series

    PM inverter type

    BPM Mini Series

    san-pham/banner_san_pham/bpm_mini_2.jpg san-pham/banner_san_pham/bpm_mini_mobile_2.jpg

    • PLC touch screen

      special_features/pcl_touch_screen_300x150.jpg

    • Inverter for Compressor

      special_features/inverter_300x150.jpg

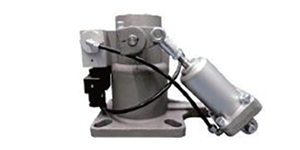

    • Applied suction valve of cylinder type

      special_features/suction_valve_300x150.jpg

    · Specifications

    MODEL MOTOR POWER PRESSURE FLOW METER NOISE OUTLET
    DIAMETER    		 RECEIVER TANK REF. DRYER LINE FILTER DIMENSION WEIGHT
    KW HP bar ㎥/min dB ℓ model ㎛ L W H kg
    BPM-7.5V 7.5 10 8 1.1 61 1/2"       850 630 785 200
    BPM-11V 11 15 1.7 63 3/4"       1060 670 915 300
    BPM-15V 15 20 2.3 63 3/4"       1060 670 915 340
    BPM-7.5VT 7.5 10 1.1 65 1" 355     1620 630 1464 320
    BPM-11VT 11 15 1.7 65 1" 355     1701 750 1709 420
    BPM-15VT 15 20 2.3 65 1" 355     1701 750 1709 460
    BPM-5.5VD 5.5 7.5 0.7 62 3/4'' 200 HAD-02HTF 3/1/0.01/0.01 1600 700 1550 350
    BPM-7.5VD 7.5 10 1.2 68 3/4" 200 HAD-02HTF 3/1/0.01/0.01 1600 700 1550 400
    BPM-11VD 11 15 1.7 68 3/4" 350 HAD-02HTF 3/1/0.01/0.01 1650 700 1670 500
    BPM-15VD 15 20 2.3 70 3/4" 350 HAD-03HTF 3/1/0.01/0.01 1650 700 1670 550
    BPM-22VD 22 30   3.6 70 3/4'' 450 HAD-03HTF 3/1/0.01/0.01 1900 900 1844 560

    ※ POWER : 3PHASE/ 380V/ 50Hz
    ※ The above specifications are subject to change without prior notice to improve product performance.
